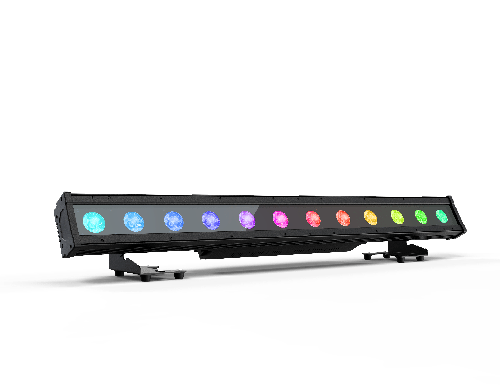

12x20W 6in1 Outdoor LED Pixel Bar
Model: LS-A001B-12x20W-6in1-Pixel-IP
Specification Overview
Optical System
- Light Source: 12x20W RGBLAC（6in1）the latest technology LED (Pixel)
- Beam Angle: 24°/38°/60°
Effect
- Dimmer,strobe,single pixel control,static color,color macro
Control & Display
- Control Channel: 11/29/72 CH
- Control Protocol: standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LCD display(Or OLED for high end model)
Power Parameter
- Voltage: AC110-240V,50-60Hz
Working Environment
- Outdoor use
IP Rate
- IP 65
Others
- Color temperature correction
- Cooling: Convection
- DMX Connector: PG 3pin dmx in /out (Or 3pin connector for high end model)
- Power Connector: PG 3pin connector (Or Powercon for high end model)
- Housing Material: Die-cast aluminium
Dimension & Weight

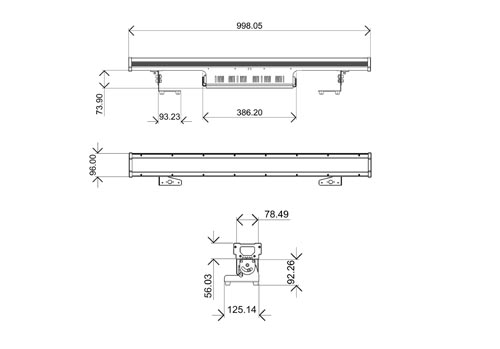

- Fixture Dimension: L100x W12.5 x H15cm(including holder height)
- Net Weight: 9.5kg
- Package dimension: 101x15x18cm,106x34x40cm
- Gross Weight: 10.5kg/set, 42kg for 4sets/master carton, 56kg for flightcase
Package
- 4 sets/master carton
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
