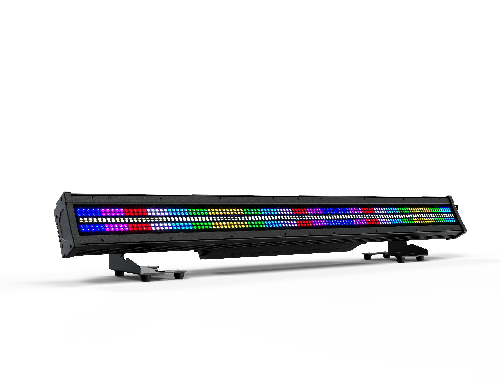

840x0.2W 3in1 Outdoor LED Bar
Model: LS-A001E-840x0.2W-3in1-IP
Specification Overview
Optical System
- Light Source: 840×0.2W 5050 RGB
- Lens: 120°
Effect
- Strobe: 1-25z, conventional strobe, self-propelled strobe,pulse strobe
Control & Display
- Control Channel: 8/11/36/41 CH
- Control Protocol: RDM,standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LCD display
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 170W
Working Environment
- Outdoor use
IP Rate
- IP 65
Others
- Cooling: Convection
- DMX Connector: PG 3pin dmx in/out
- Power Connector: 3pin connector
- Housing Material: Die-cast aluminium
Dimension & Weight

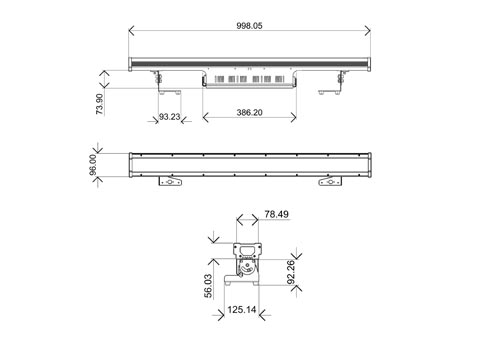

- Fixture Dimension: L100x W12.5 x H15cm(including holder height)
- Net Weight: 9.5kg
- Package dimension: 101x15x18cm,106x34x40cm
- Gross Weight: 10.5kg/set, 42kg for 4sets/master carton, 56kg for flightcase
Package
- 4 sets/master carton
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
