40x10W 4in1 Outdoor LED Wall Washer
Model: LS-A002B-40x10W-4in1-IP
Specification Overview
Optical System
- Light Source: 40x10W RGBW 4in1 LED
- Beam Angle: 10°/25°/45°
Effect
- Dimmer,strobe,static color,color macro
Control & Display
- Control Channel: 4/6/8/40 CH
- Control Protocol: standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LCD display(Or OLED for high end model)
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 420W
Working Environment
- Outdoor use
IP Rate
- IP 65
Others
- Color temperature correction
- Cooling: Convection
- DMX Connector: PG 3pin dmx in /out (Or 3pin connector for high end model)
- Power Connector: PG 3pin connector (Or Powercon for high end model)
- Housing Material: Die-cast aluminium
- Housing Color: black or white
Dimension & Weight

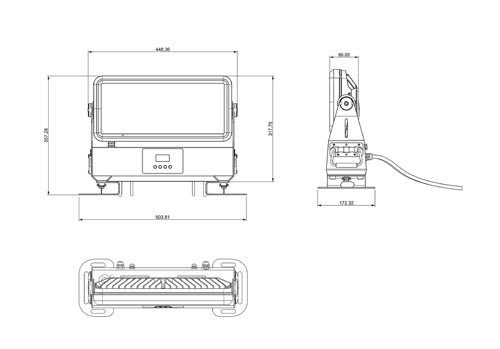

- Fixture Dimension: L50.3x W17.3 x H35.8cm (including holder height)
- Net Weight: 9.8kg
- Package dimension: 54x28x42cm,55x58x43cm
- Gross Weight: 10.5kg/set, 22kg for 2 sets/master carton
Package
- 2 sets/master carton
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
