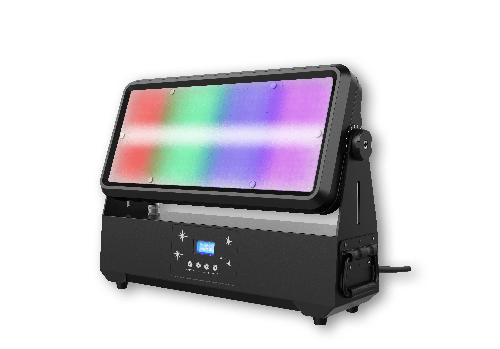

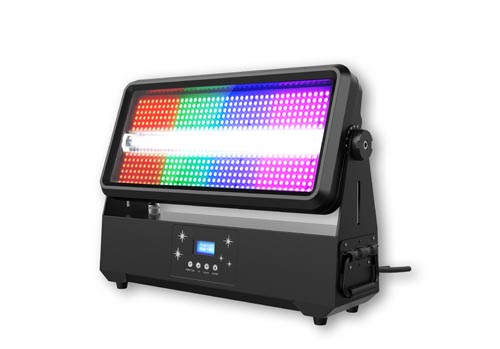

Outoor Strobe LED Panel Light
Model: LS-A002C-Strobe-IP
Specification Overview
Optical System
- Light Source: 3535 3W 576 RGB LED
- Color Temperature: 6500K
- LED Segments: 8
Effect
- Dimmer: 0-100% electronic
- Strobe: electronic, max.20 Hz
- Color macro
Movement Parameter
- Tilt: 185°
Control & Display
- Control Channel: 7/14/16/42/44CH
- Control Protocol: standard DMX512,RDM
- RDM: Bidirectional communication
- Menu Display: LCD display
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 426W
Installment

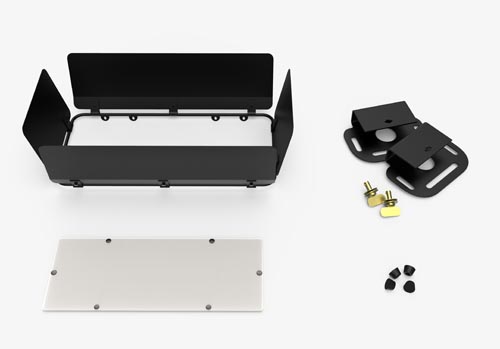

- Optional Hanging Type: Omega Bracket
Working Environment
- Outdoor use
- Temperature: -30°C -50°C
IP Rate
- IP 65
Others
- Color temperature correction
- Resolution: 8-16 Bit
- Cooling: Temperature controlled, overheating protection
- DMX Connector: PG 3pin dmx in /out
- Power Connector: PG 3pin connector
- Housing Material: Die-cast aluminium
- Housing Color: black or white
Dimension & Weight

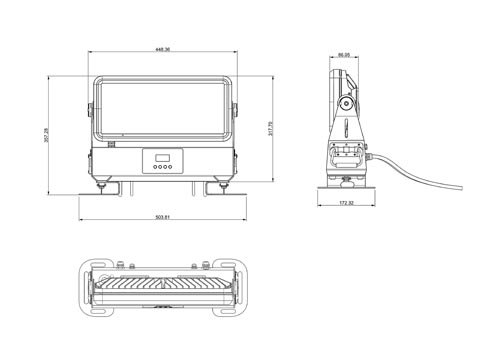

- Fixture Dimension: L50.3x W17.3 x H35.8cm (including holder height)
- Net Weight: 9.8kg
- Package dimension: 54x28x42cm,55x58x43cm
- Gross Weight: 10.5kg/set, 22kg for 2 sets/master carton
Package
- 2 sets/master carton
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
