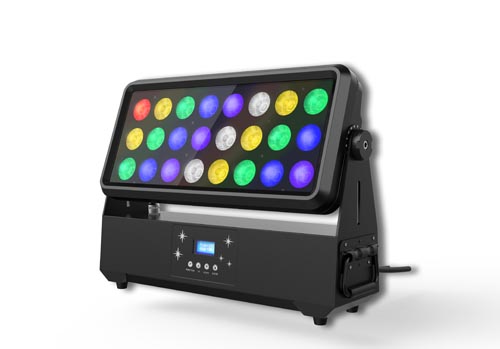

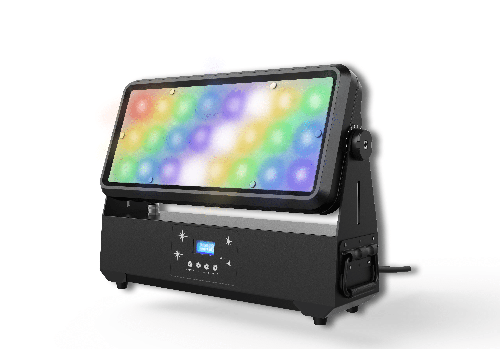

24x20W 6in1 Outdoor LED Wall Washer
Model: LS-A002D-24x20W-6in1-Pixel-IP
Specification Overview
Optical System
- Light Source: 24*20w RGBLAC（6in1）the latest technology LED source (pixel)
- Beam Angle: 10°/25°/45°
Effect
- Dimmer,strobe,static color,color macro
Control & Display
- Control Channel: 6/8/44CH
- Control Protocol: standard DMX512, master-slave model, sound activted control, auto operation
- Menu Display: OLED display
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 480W
Working Environment
- Outdoor use
IP Rate
- IP 65
Others
Color temperature correction
Cooling: convection
DMX Connector: 3pin dmx in /out
Power Connector: Powercon
Housing Material: Die-cast aluminium
Housing Color: black or white
Dimension & Weight

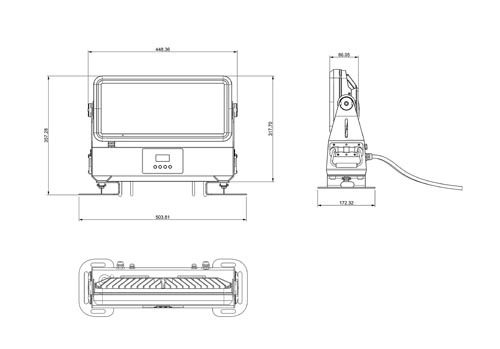

- Fixture Dimension: L50.3x W17.3 x H35.8cm (including holder height)
- Net Weight: 9.8kg
- Package dimension: 54x28x42cm,55x58x43cm
- Gross Weight: 10.5kg/set, 22kg for 2 sets/master carton
Package
- 2 sets/master carton
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
