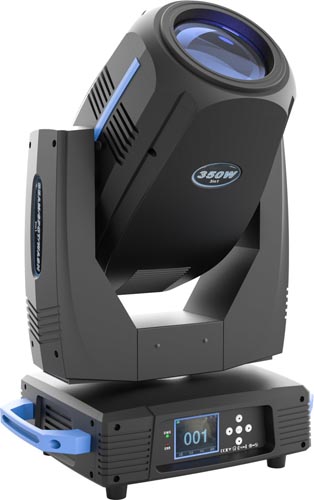

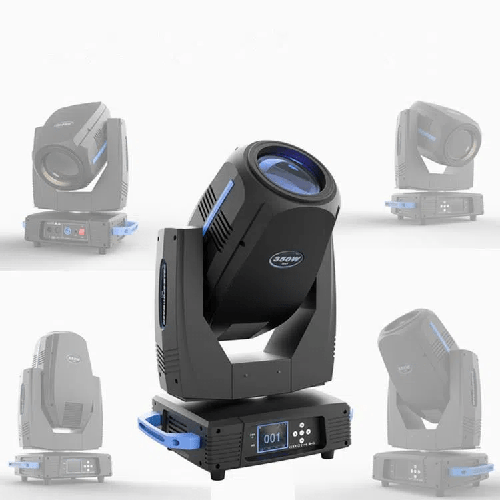

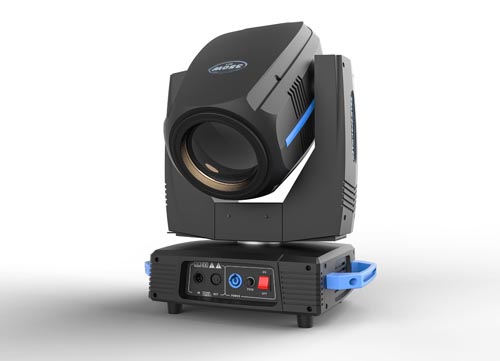

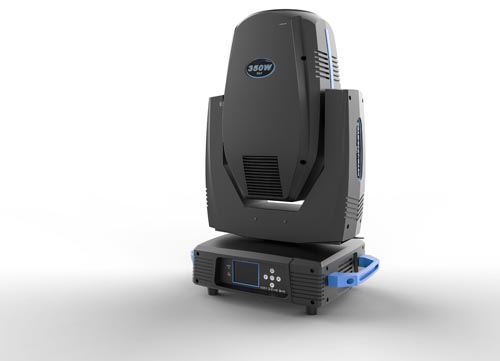

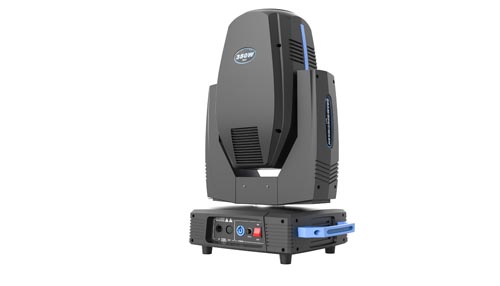

350w BSW Moving Head Light

Model: LS-M001-H350-BSW

Specification Overview

Optical System

Light Source: YODN MSD 350W 3in1 17R
Light Source Life: 1000 to 2000 hours
Color temperature: 8000K
Beam Angel: 2°-38° via zoom function

Color System

13 color filters+open

Gobo System

Fixed Gobo wheel: 14 fixed gobos+open
Rotation Gobo Wheel: 9 rotation gobos+open

Effect

Prism: 2 prisms with rotation in both directions, 1 round 8 facet prism + 16 facet prism, 1 linear 6 facet prism
Strobe: 0.5-9 times/second
Zoom: motorized linear zoom system, zoom range 2°-38°
Focus： with electronic focus function

Movement Parameter

PAN 540° , TILT 270°
Automatic Pan/Tilt error correction
Pan/Tilt with 3 phase motor
Pan/Tilt moving speed adjustable
Easy calibration and maintenance by magnetic home positioning
Pan/Tilt position lock for transporting protection

Control & Display

Control Channel: 20/24 CH
Control Protocol: Standard DMX512, master-slave model, sound activted control, auto operation
Menu Display: touch LCD display screen and button control. Display can change 180° to fit different installation positions

Power Parameter

Voltage: AC90-260V,50-60Hz

Working Environment

Indoor use

IP Rate

IP 20

Others

DMX Connector: 3pin dmx in /out
Power Connector: Powercon connector

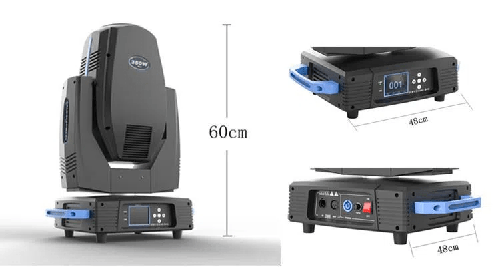

Dimension & Weight

Package Dimension: 48x48x60cm(1 set)
Gross Weight: 23.5 Kg

Package

1 set / carton box

** Errors and omissions are possible. All specifications are subject to change without prior notice. **
