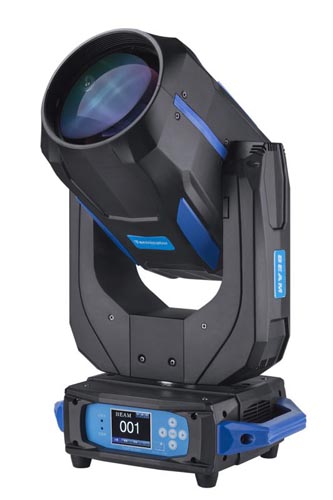

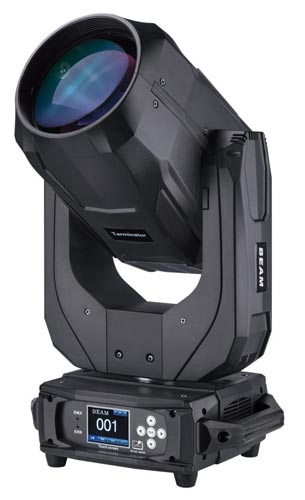

260w/330W/350W Beam Moving Head
Model: LS-M002-H260W-B
Specification Overview
Optical System
Light Source: Osram 260W/ 330W /350W lamp for option
Light Source Life: 2000 hours
Color temperature: 8500K
Beam Angel: 0°-3.8°
Color System
- 13 color filters+open
Gobo System
- 1 fixed gobo wheel with 17 gobos+open
Effect
- Prism: 2 rotation prisms, 1 round 8 facet prism with rotation , 1 round 16 facet prism with rotation in both directions
- Strobe: 0.5-9 times/second
Movement Parameter
- PAN 540° , TILT 270°
- Automatic Pan/Tilt error correction
- Pan/Tilt with 3 phase motor
- Pan/Tilt moving speed adjustable
Control & Display
- Control Channel: 17 CH
- Control Protocol: Standard DMX512, master-slave model, sound activted control, auto operation
- Menu Display: touch LCD display screen and button control. Display can change 180° to fit different installation positions
Power Parameter
- Voltage: AC90-260V,50-60Hz
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- DMX Connector: 3pin dmx in /out
- Power Connector: Powercon connector
- Housing material: fireproof plastic
Dimension & Weight
- Package Dimension: 40x33x68 cm (carton)/ 84X37X78cm(flight case)
- Gross Weight: 17kg(carton)/ 57kg (flight case)
Package
- 1 set/carton
- 2 sets/flight case
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
