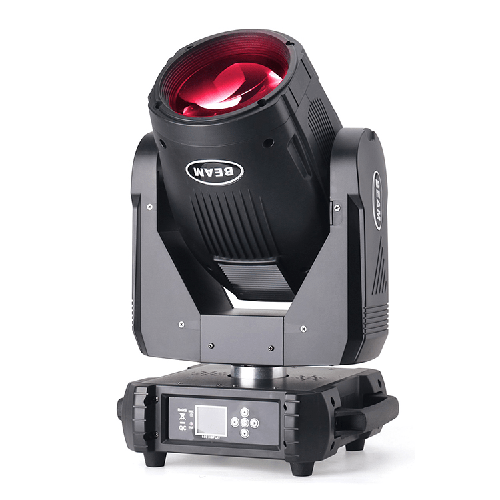

250W/9R BSW 3in1 Moving Head
Model: LS-M004-250-BSW
Specification Overview
Optical System
- Light Source: 1x 250w Philips MSD discharge lamp
- Beam Angle: 1.5°~2°
- Illuminance: 10meter@LUX270,000
Color System
- Color Wheel: 13 color filters+white,rotation with variable directions and speeds
Gobo System
- Fixed Gobo Wheel: 1 fixed gobo wheel with 14 gobos+open, gobo size: dia145mm
Effect
- Prism: 8-facet prism,16 facet prism, reaching an effect of 8/16/8+16 rainbow prism
- Focus: 0~100%
- Dimmer: 0-100% Linear dimming
- Forest: Forest function with wash effect
- Strobe: High speed strobe effect with 1-25 flashes per second
Movement Parameter
- PAN 540° , TILT 270°
Control & Display
- Control Channel: 7 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LCD display
Power Parameter
- Voltage: AC90-240V,50-60Hz
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- Efficient low noise fan cooling system
- Overheat Protection: Temperature is up to 40°, the fans begin to work. Temperature is up to 70°,brightness reduces half
- DMX Connector: 3-pin XLR DMX in/out
- Power Connector: Powercon connector
Package
- 1 in 1 carton , 2 in 1 flight case
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
