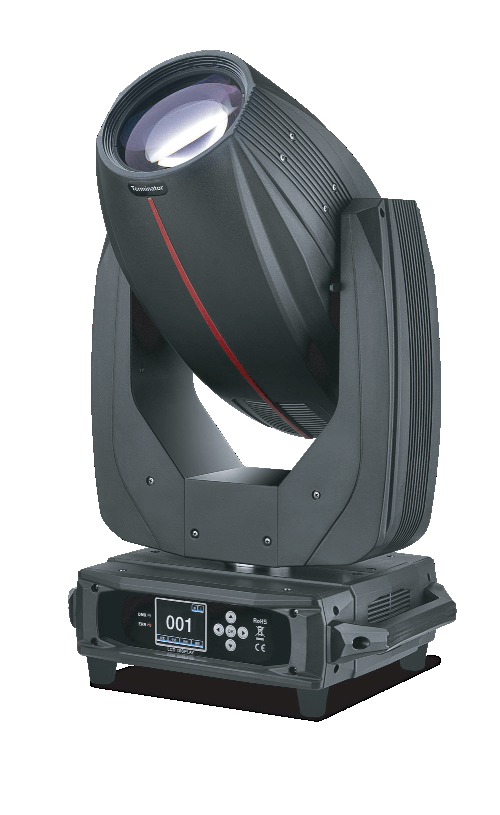

CMY 380W/450W 3in1 Moving Head
Model: LS-M005-380W/450W
Specification Overview
Optical System
- Light Source: Philips 380W bulb or Japan Panasonic 450W bulb
- Color Temperature: 7800K
- Light Source Life: 1500 H (the bulb and reflector are packaged as a whole, with higher light efficiency and longer life)
Color System
- Color Wheel: 11 color filters+white
- CMY Color Mixing System: three primary colors, infinite color mixing
Gobo System
- Static Gobo Wheel: 6 white lights + 9 patterns
- Dynamic Gobo Wheel: white light + aperture + 3 arc dynamic patterns
- Metal Rotating Gobo Wheel: white light + 7 glass patterns
Effect
- Prism: 8 prisms, 24 prisms (double prisms can be stacked 24, and can be rotated independently in both directions
- Dimmer: 0-100% Linear dimming
Movement Parameter
- PAN 540° , TILT 270°, a total of 15 silent motors, XY
- Three-phase motors
Control & Display
- Control Channel: 19 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
Power Parameter
- Voltage: AC220V,50-60Hz
- Power Consumption: 600w
- Fuse: 7A
- Ballast: Electronic ballast
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- DMX Connector: 3-pin XLR DMX in/out
- Power Connector: PowerCon In/out
- Housing Material: High temperature resistant plastic
- Housing Color: Black
Dimension & Weight
- Fixture Size: L395xW293xH700m
- Net Weight: 20.8 kg
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
