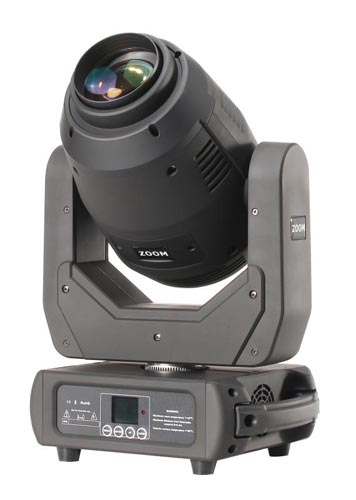

250W Zoom BSW LED Moving Head

Model: LS-M007-250-Zoom-BSW

Specification Overview

Optical System

Light Source: 250W high output white LED
Light Source Life: 50,000 hours
Illuminance: 13300LUX@5M at white light zoom in, 950LUX@5M at white light zoom out

Color System

Color Wheel: 7 colors +white, color fine tuning, rotation with variable directions and speeds

Gobo System

Static Gobo Wheel: 8 gobos + white,wheel rotation and shake
Rotation Gobo Wheel: 7 gobos + white,wheel rotation and shake

Effect

Prism: 8 facet prism, bidirectional rotation at variable speeds
Dimmer: 0-100% Linear dimming
Zoom Angle: 5.5°~30°
Frost Effect
Strobe: 1-25 times/second

Movement Parameter

PAN 540° , TILT 270°

Control & Display

Control Channel: 16/18 CH
Control Protocol: DMX512, master-slave, sound activated, auto
Menu Display: LCD display

Power Parameter

Voltage: AC90V-260V,50-60Hz
Power Consumption: 350W

Working Environment

Indoor use

IP Rate

IP 20

Others

Two 1/4 turn fastening Omega Clamps

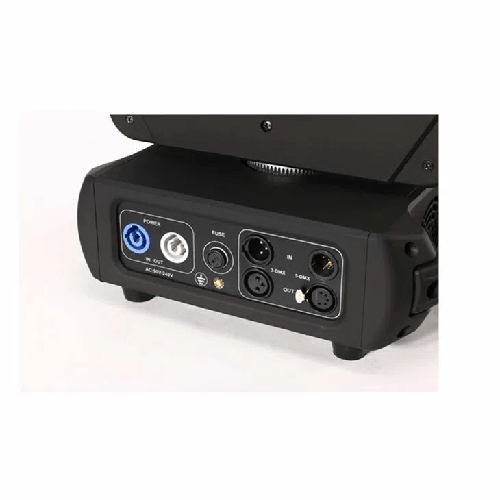

DMX Connector: 3-pin & 5-pin XLR DMX in/out
Power Connector: PowerCon In/out
Cooling: Silent fan system
Overheat Protection: Temperature is up to 40°, the fans begin to work. Temperature is up to 70°,brightness reduces half

Dimension & Weight

Fixture Size: 320(L)x220(W)x480(H)mm
Net Weight: 13.5 kg
Package Dimension: 365(L)x280(W)x600(H)mm (1in1 carton)
Gross Weight: 16.5kg

** Errors and omissions are possible. All specifications are subject to change without prior notice. **
