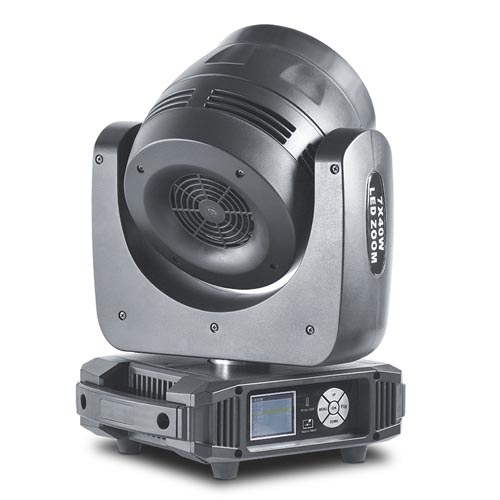

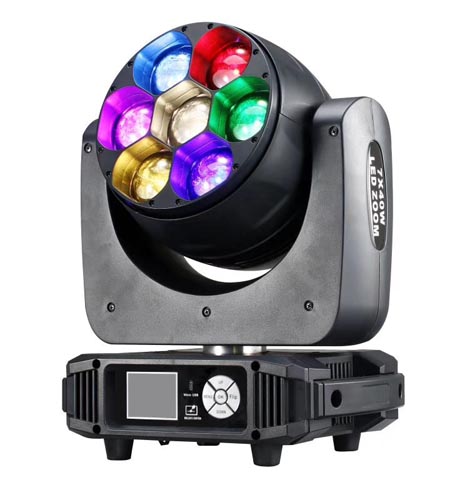

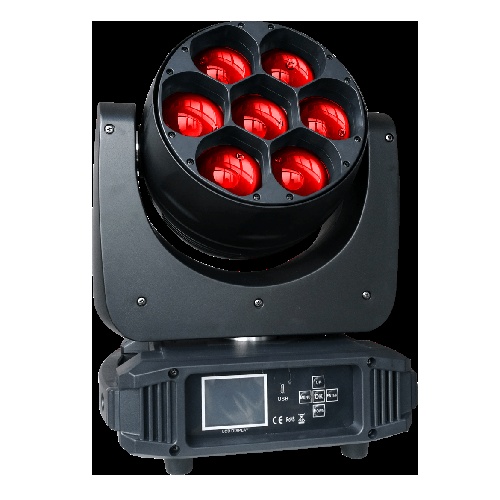

7X40W Zoom LED Moving Head
Model: LS-M008-7x40W-Zoom
Specification Overview
Optical System
- Light Source: 7x40w RGBW 4in1 Osram LED
- Light Source Life: 80,000 hours
Effect
- RGBW color mixing system, LED shutter, LED dimming, LED rainbow effect, macros effect General dimming and blackout for all four colors
- Zoom Angle: 5°~50°
- Strobe: 18 times per second and pulse effect
Movement Parameter
- PAN 540° , TILT 270°
- 540°pan and 190°tilt movement Scan position memory,auto reposition after unexpected movement
- Pan/Tilt 8 bit smooth and 16 bit precise resolution for PAN/TILT movement
Control & Display
- Control Channel: 12/17 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LCD display
Power Parameter
- Voltage: AC100V-240V,50-60Hz
- Power Consumption: 350W
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- Power Connector: PowerCon In/out
- DMX Connector: 3-pin XLR DMX in/out
- Cooling: Fan cooling
- Built-in dual temperature control function,intelligently controlling the power output of LED
Dimension & Weight
- Package Dimension: 44×31×36cm
- Gross Weight: 12 kg
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
