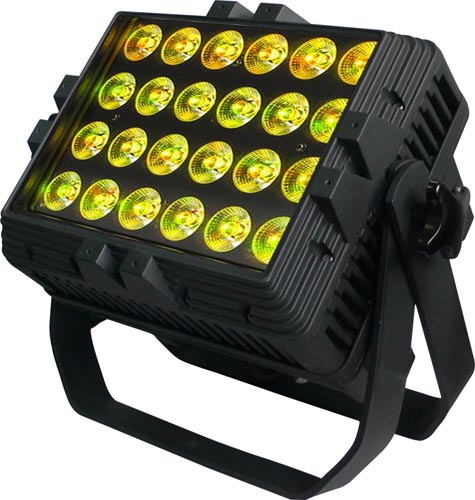

24x10W 5in1 LED Outdoor Par
Model: LS-P003B-24x10W-5in1-IP
Specification Overview
Optical System
- Light Source: 24x10W RGBWA 5in1 LED (4in1 /6in1 optional)
- Light Source Life: 60,000 hours
- Beam Angel: 25°/ 35°/ 40° (optional)
Effect
- Dimmer: 0-100% linear dimming
- Color mixing,static color,color chasing,strobe
Control & Display
Control Channel: 9 CH
Control Protocol: Standard DMX512, master-slave model, sound activted control, auto operation
Menu Display: LED display
Power Parameter
- Voltage: AC110-240V,50-60Hz
Working Environment
- Outdoor use
- Temperature: -20°C- 40°C
IP Rate
- IP 65
Others
- Cooling:natural convection heat transfer
- DMX Connector: PG 3pin connector
- Power Connector: PG 3pin connector
- Housing Material: Die cast aluminum
- Housing Color: Black
Dimension & Weight
- Package Dimension: 350x320x350mm (1set/carton),700x620x350mm(4 sets/carton)
- Gross Weight: 9.5kg (1set/carton), 35KGS (4 sets/carton)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
