4x100W COB Led Stage Blinder
Model: LS-S003-400W-IP
Specification Overview
Optical System
Light Source: 4x100W WW Or WW+CW COB Led (pixel)
Beam Angle: 70°
Control & Display
- Control Channel: 1/2/4/8 CH
- Control Protocol: standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LED display
Effect
- Variable run method, jump change,gradual change
- Dimmer: 0-100% linear dimming
- Strobe: 1-25 times/sec or random strobe
Power Parameter
- Voltage: AC90-240V,50-60Hz
- Power: 400W
IP Rate
- IP 65
Others
- Power Connector: PG connector
- DMX Connector: 3pin dmx in/out
- Housing Material: aluminum alloy die-casting
Dimension & Weight
Fixture Dimension: 36.4x36.4x12.3cm
Package Dimension: 55x84x59cm 4pcs/flight case
Package
- 4 sets/ flight case
** Errors and omissions are possible. All specifications are subject to change without prior notice. **

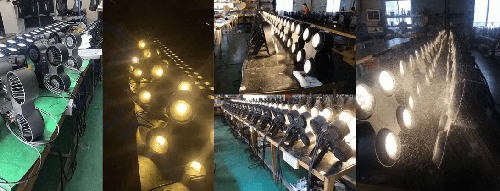

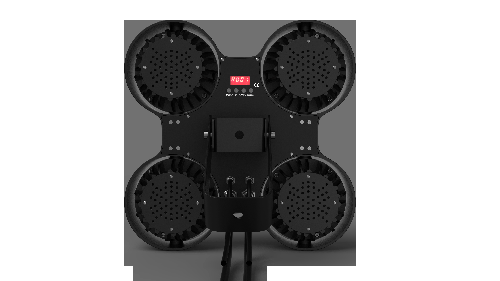

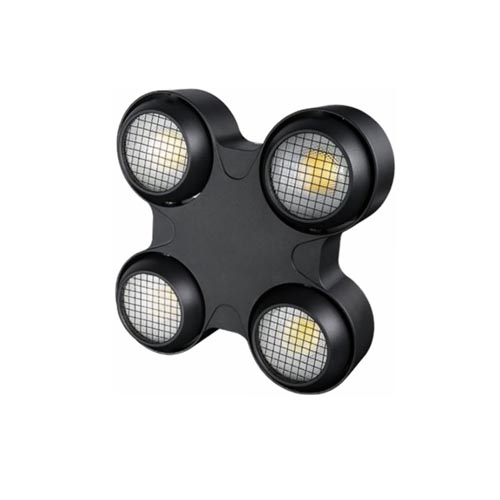

Images
